Vertical Lift Module Kardex Shuttle

Vertical Lift Module

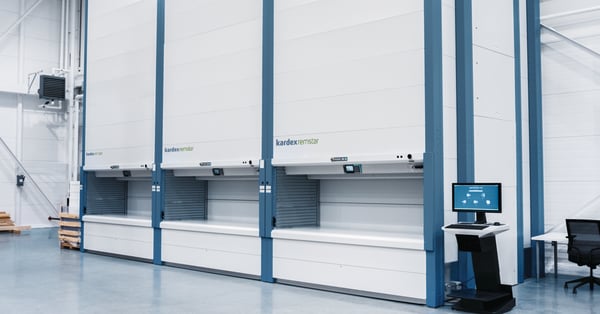

The Kardex Shuttle Vertical Lift Module (VLM) features an enclosed shelf-based storage system designed to increase capacity in a more compact footprint.

The Kardex Shuttle Vertical Lift Module (VLM) is an automated, high-density storage solution that delivers goods directly to the operator—eliminating wasted time spent walking, searching, and bending. Operating on the proven goods-to-person principle, the VLM dramatically improves picking speed, accuracy, and ergonomics.

With a modular, space-saving design, the Shuttle VLM maximizes vertical capacity in a minimal footprint, making it ideal for growing operations in manufacturing, distribution, and warehousing.

Its flexible configuration adapts to your inventory needs over time, while intuitive controls and smart software simplify operation with minimal training. Whether you're storing small parts, tools, or sensitive materials, the Shuttle VLM boosts productivity while helping reclaim valuable floor space.

How Do Vertical Lift Modules Work?

Request a Consultation

Elevate your storage with the best-in-class VLM Kardex Shuttle

99%

Pick Accuracy
67%

Labor Force Reduction
85%

Floor Space Savings

99%

Pick Accuracy

67%

Labor Force Reduction

85%

Floor Space Savings

“The VLM Kardex Shuttles are the most efficient way to keep parts secure, clean and organized, and in a very small and compact footprint.”

Joseph Forsyth Intech Athens

Kardex Shuttle VLM Models

Tab Navigation

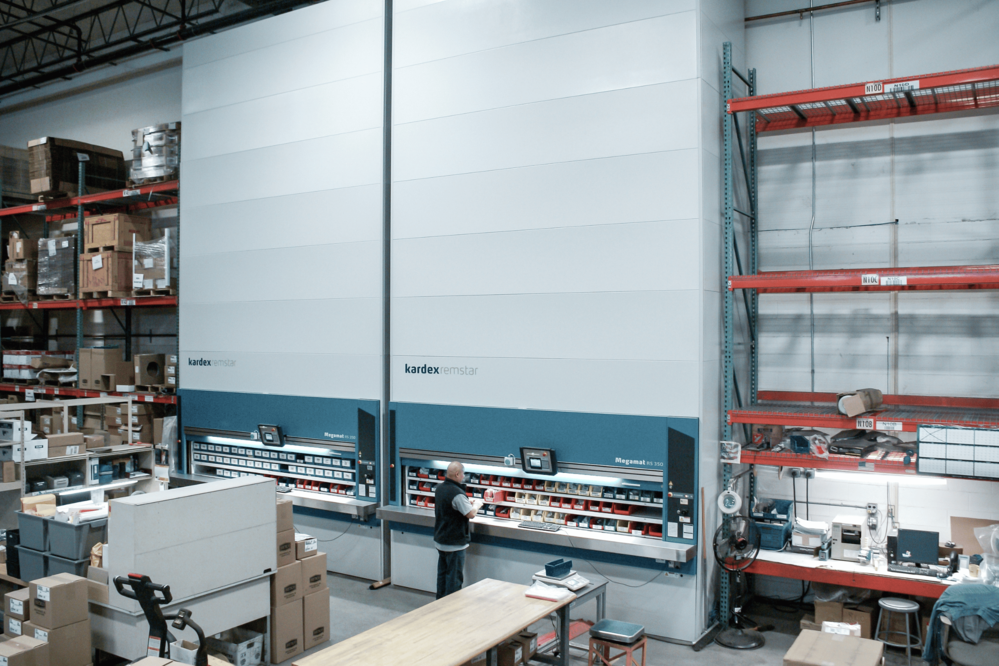

Kardex Shuttle 250/500

Flexible solution for small parts and lightweight inventory

The Kardex Shuttle 250/500 is a flexible solution for storing and retrieving small-sized inventory. With a tray width of 4,050 mm (159.5 in), the Kardex Shuttle 250/500 can handle loads up to 560 kg (1,234.6 lbs) per tray. It’s compact design allows it to adapt to space requirements, offering maximum storage capacity in a minimal footprint with a maximum height of 30 m (98.4 ft). Further, the system easily modifies to a wide range of requirements. For example, for storing goods in temperature controlled units or under clean room conditions.

Kardex Shuttle 700

Highly compact storage for medium loads

The Kardex Shuttle 700 handles a tray width of 4,050 mm (159.5 in) and loads up to 725 kg (1,598 lbs) per tray. It adjusts to a device height of 20 m (65 ft) allowing a large storage volume. The Kardex Shuttle 700 is ideal for efficiently storing and retrieving heavy tools, components or spare parts. It is extremely flexible with a number of different options that can be easily integrated before or after installation. The units can expand, decrease, modify or adapt in various ways to cater to changing needs including business growth, new applications, or a relocation.

Kardex Shuttle 1000

Manages heavy duty loads up to 1,000 kg
With a tray width of 4,050 mm (159.5 in), the Kardex Shuttle 1000 loads up to 1,000 kg (2,204 lbs) per tray. Achieving new load-carrying capacity standards, it's ideal for storing medium-heavy to heavy parts. Using a forklift, stack and store Euro pallets and mesh boxes in specially designed trays. This saves space and makes it possible to find goods faster, helping to lower costs, boost productivity and increase ergonomics. A factory-installed crane can be used to move stored goods easily, decreasing working times and costs.

Download the Product Brochure

Faster access times
Perfect for variable or changing part sizes
Saves up to 85% floor space by utilizing full ceiling height
